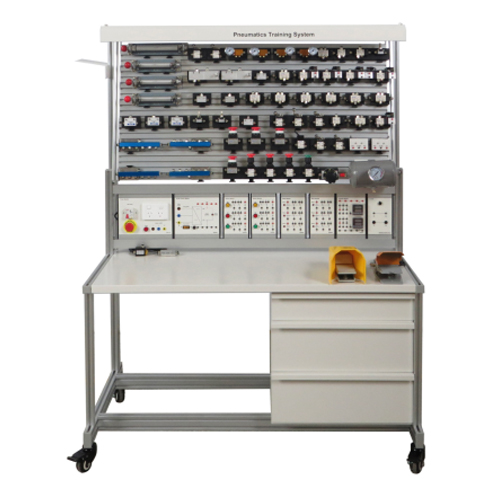

ZMP1112 Pneumatics Training System Vocational Trainer Workbench Educational Laboratory Bench Pneumatic Didactic Equipment

1. Product Introduction
1.1 Product Description
This system is designed according to the requirements of modern pneumatic professional teaching experiments and the general content of textbooks such as "Pneumatic Transmission" and "Pneumatic Control Technology". In addition to conventional basic pneumatic control circuit experiments, this system can also simulate pneumatic control technology application experiments and pneumatic technology course design, making it a typical mechatronics experimental device.
Through practical operation experiments and course design, students can accurately grasp the structure of pneumatic components, the control principles and design methods of pneumatic circuits, and control principles, etc.
1.2 Product Features
(1) Meet the needs of schools
(2) Meet the actual application needs of bases and teaching training systems
(3) The equipment has a solid structure and good stability
(4) Low operating noise
(5) Clear layout and attractive design
2. Technical Specifications
2.1 Basic Technical Parameters

Working Power Supply

Single-phase Three-wire AC 220V±10% 50Hz

2.2 Equipment External Parameters

Dimension	1300mmX710mmX1715mm
Weight	＜200kg

3. Product Introduction
3.1 Main Body of the Product

NO.	Name	Qty.
1	Module	8
2	Component	62
3	Cabinet	3
4	Universal wheel	4

3.2 Product Module Section

NO.	Name	Qty.
1	Main power supply box	1
2	DC power supply box	1
3	Relay box	2
4	Push-button box	2
5	Counter box	1
6	Foot pedal switch box	1

3.3 Product Accessories

NO.	Name	Qty.
1	4mm electrical safety cable 0.25m, Double-ended, Dual-color	1
2	4mm electrical safety cable 0.25m, Double-ended, Blue	1
3	4mm electrical safety cable 0.25m, Double-ended, Yellow	1
4	2mm electrical safety cable 100cm, Red	20
5	2mm electrical safety cable 100cm, Black	20
6	2mm electrical safety cable 100cm, Yellow	20
7	4mm electrical safety cable 1m, Double-ended, Black	5
8	Airpipe Scissors TK-3	1
9	Pneumatic three-way connector SS-PE-6, White, T-type	6
10	Pneumatic four-way Connector ∮6	2
11	Airpipe 6*4	30

5. List of Product Teaching Experiments
(1) Three-cylinder logic sequence reversal experiment
(2) Single-acting cylinder reversing circuit
(3) Single-acting cylinder speed control circuit
(4) Delay circuit
(5) Multi-cylinder sequential action circuit
(6) Single-cylinder single reciprocating control circuit
(7) Double-cylinder synchronous action circuit
(8) OR gate shuttle valve application circuit
(9) Double pressure valve and gate application circuit
(10) Quick exhaust valve application circuit
(11) Relay control circuit
(12) Foot switch module experiment
